Shuttering Magnets

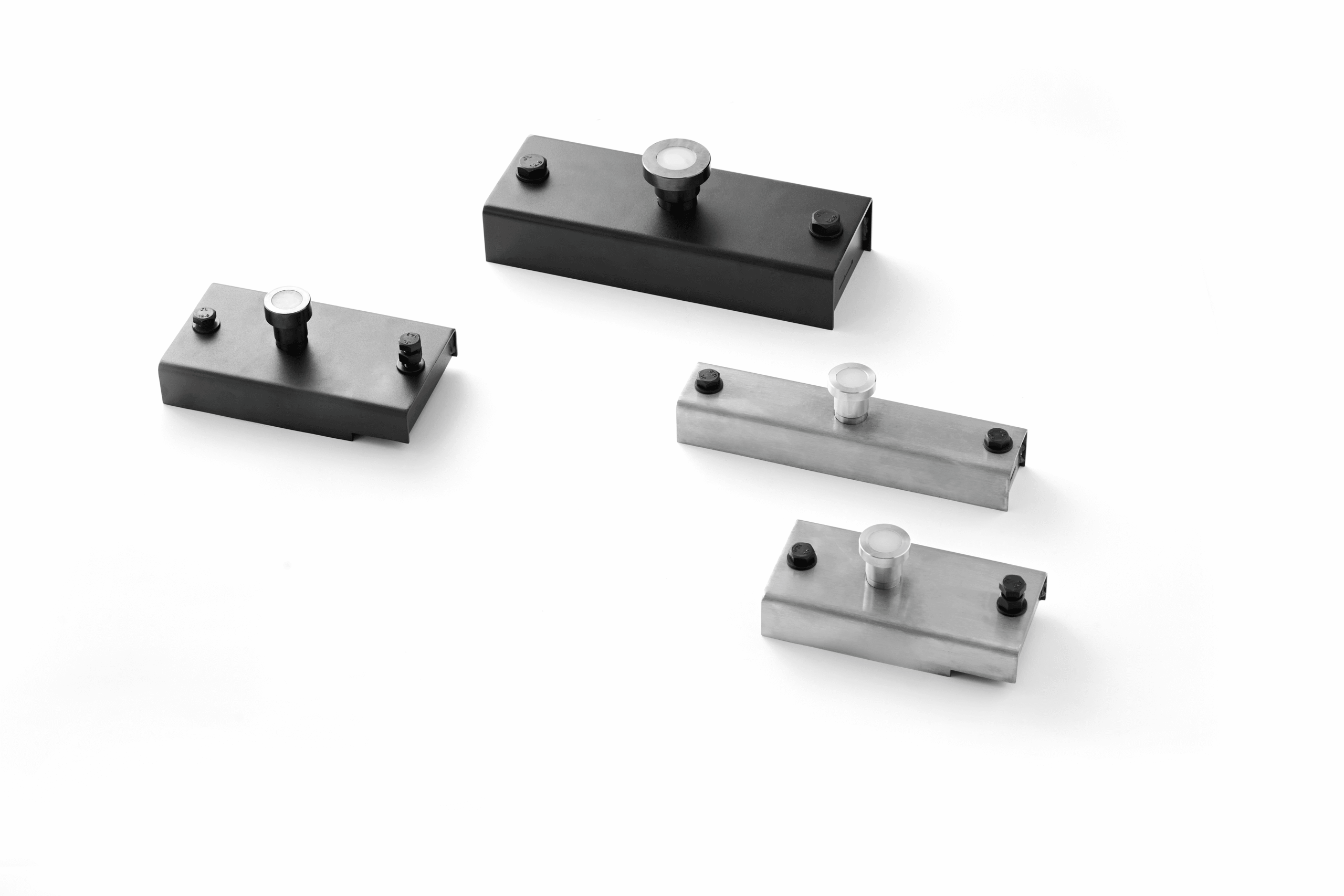

Shuttering magnets are one the most important accessory of precast concrete magnets which mainly designed to fix the side rails and blockouts when pouring concrete.

Structure of Shuttering Magnets

Shuttering Magnets-structure

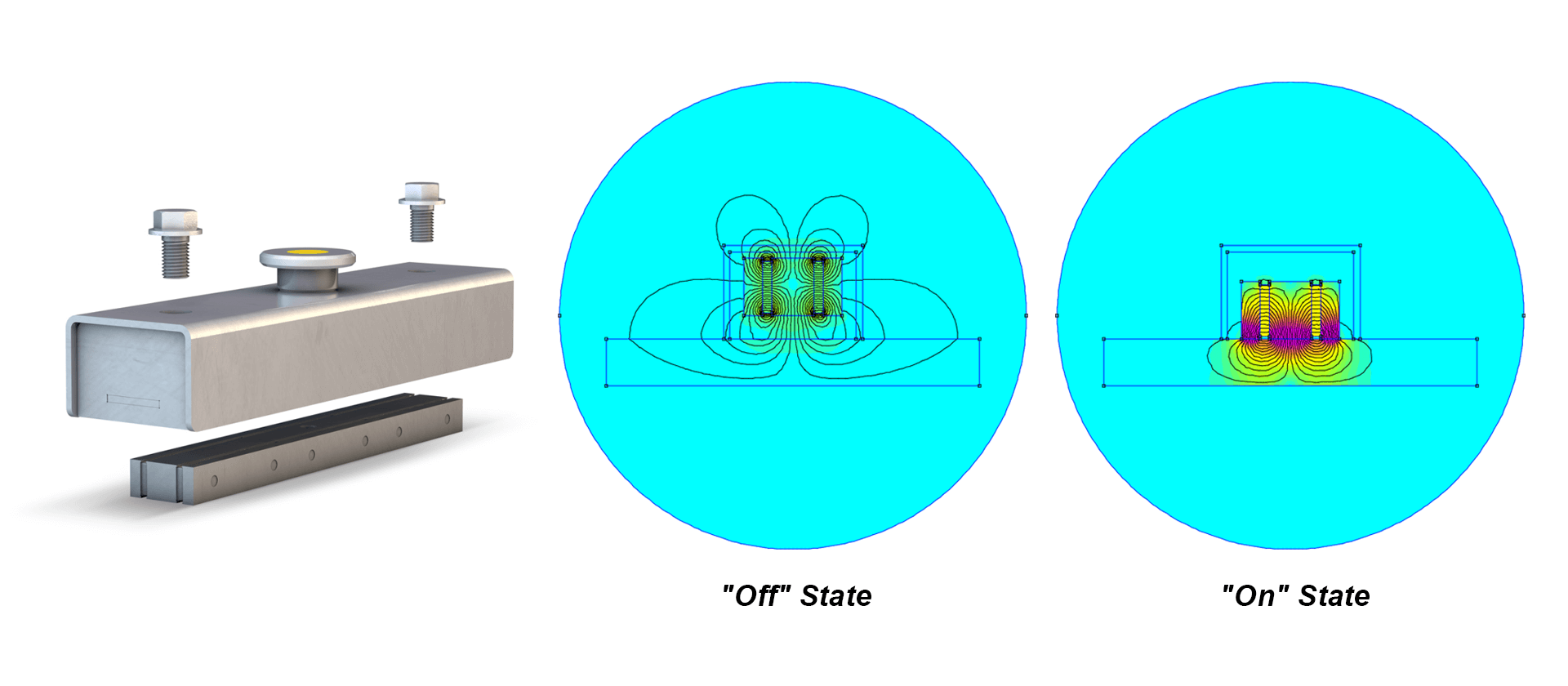

Working Principle of Shuttering Magnets

The core component of the entire shuttering magnets is the magnetic array. Sintered Neodymium magnets and steel plates form a special magnetic circuit which provides extremely strong attractive force, and this attractive force is dominated by the air gap, therefore, thickness and smoothness of the working surface is directly affecting the attractive force.

Shuttering Magnets-working principle

Instructions of Shuttering Magnets

  • Place shuttering magnets on the specified location.
  • Shuttering magnet will attract on board after pressing clamping handle.
  • Use professional crowbar to pry clamping handle, then the attractive force will release with the increase of the air gap between the magnetic array and board.

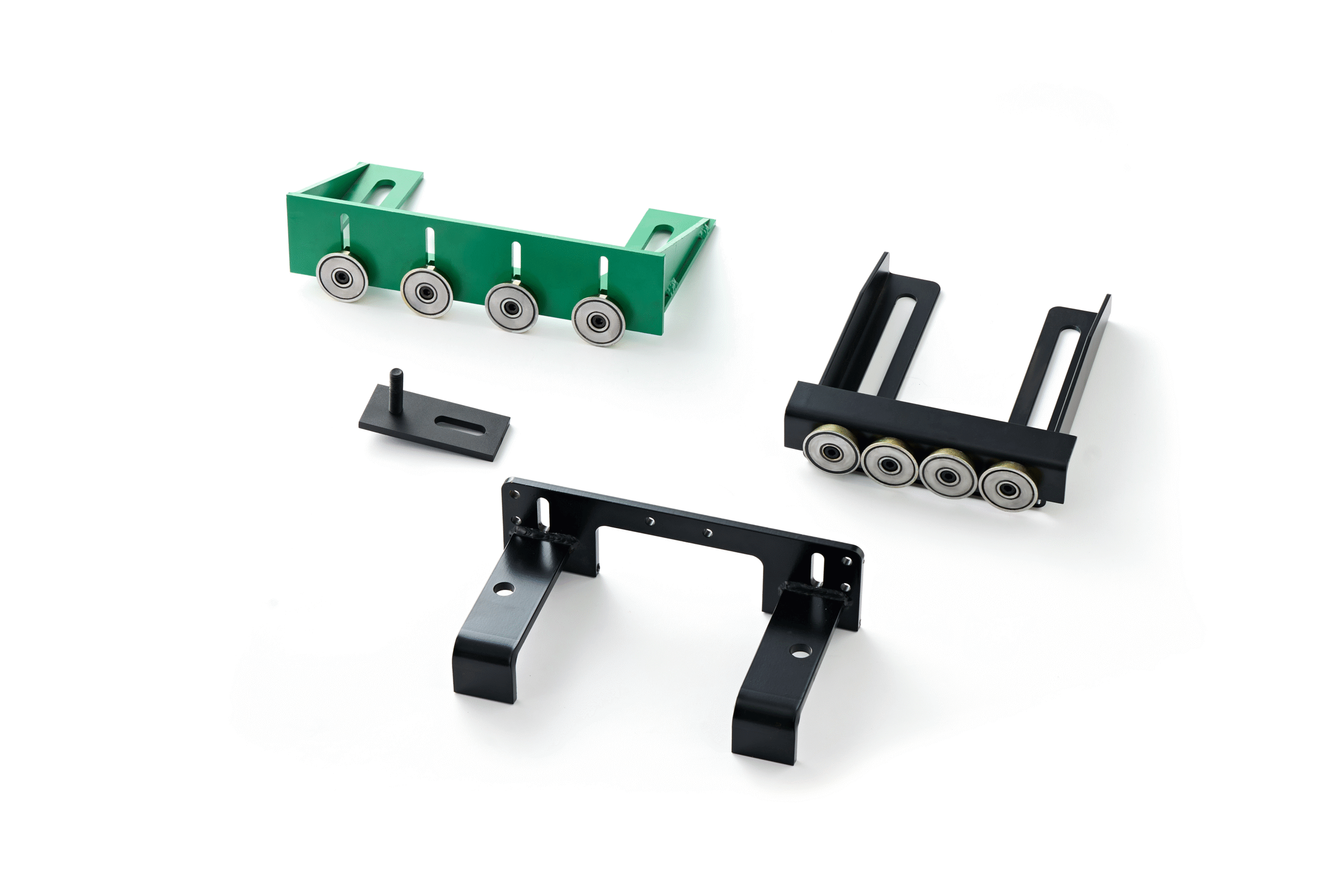

  • Fixing screws can be utilized to secure different kind of side rails and blockouts.

Maintenance of Shuttering Magnets

  • Maximally prevent magnet’s damage and avoid external force.
  • It is similar to magnetic lifter that the working surface of magnetic array should maintain as clean and smooth as possible.
  • Flexibility of clamping handle will be influenced by invading scrap-iron and concrete.
  • Properly rust prevention.
  • Max. Operating Temperature of simple shuttering magnet should be less than 80 degree
  • Safety tips should refer to the permanent magnets.

Specifications of Shuttering Magnets

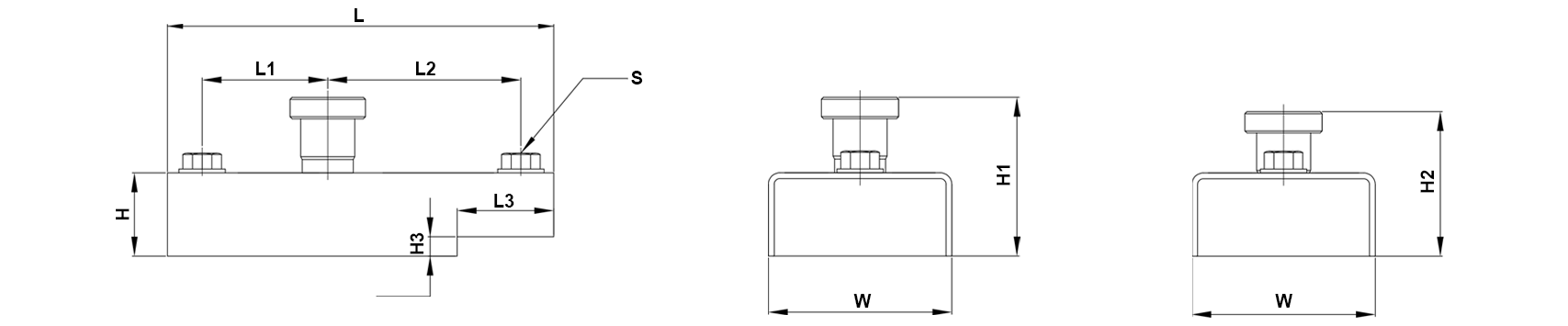

Shuttering Magnets-drawing
Model Dimension (mm) Cover material Net weight

(kg)

Attractive forece

(kg)

L W H L1 L2 L3 H1 H2 H3 S
SDM600 210 60 40 92.5 71.5 40 74 65 M12 S304 1.9 600
SDM800 210 62 54 85 85 88 79 M12 Q235 2.8 800
SDM900 210 62 54 85 85 88 79 M12 Q235 3.0 900
SDM1000A 200 98 40 99.5 67.5 50 75 65 10 M12 S304 2.8 1000
SDM1000B 240 68 54 90 90 88 79 M12 Q235 3.2 1000
SDM1800A 260 120 60 112 112 94 85 M16 S304 5.7 1800
SDM1800B 260 120 60 112 112 94 85 M16 Q235 6.3 1800
SDM2100A 320 120 60 136 136 94 85 M16 S304 7.3 2100
SDM2100B 320 120 60 136 136 94 85 M16 Q235 7.4 2100
SDM2400A 320 120 60 136 136 94 85 M16 S304 7.5 2400
SDM2400B 320 120 60 136 136 94 85 M16 Q235 7.6 2400
SDM3000 320 160 60 136 136 94 85 M16 Q235 10.6 3000
