Neodymium Sphere Magnets

Ι What Are Neodymium Sphere Magnets?

Neodymium magnets are permanent magnets made from an alloy of Neodymium (Nd), Iron (Fe), and Boron (B). They are often called “Neo magnets” or “NdFeB magnets,” which are simply short names for Neodymium and Neodymium-Iron-Boron magnets.

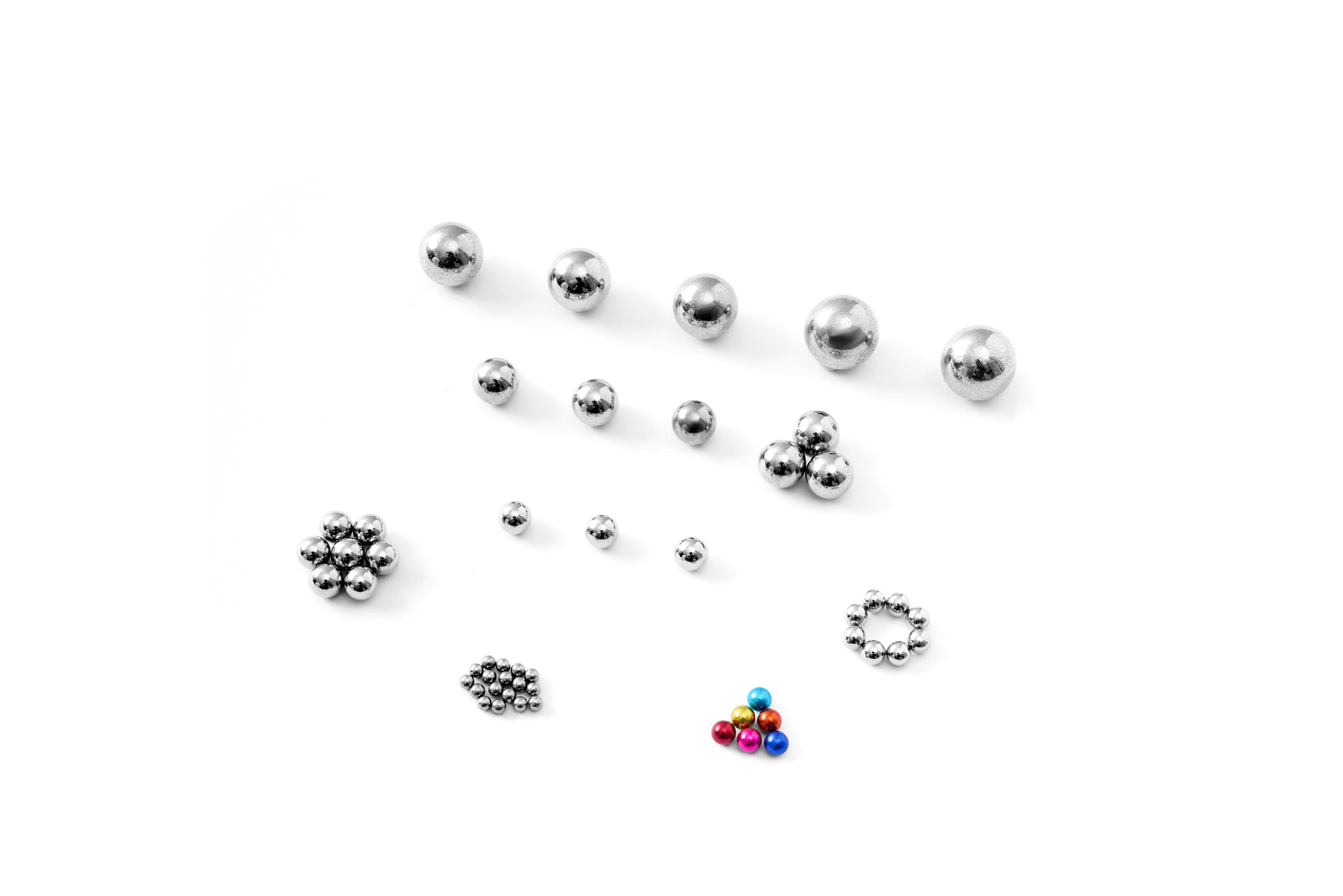

Neodymium sphere magnets, also known as buckyballs or magnetic balls, are spherical Neodymium magnets that entered the consumer market as “buckyballs” at the New York International Gift Fair in 2009. Their polarity is similar to the Earth’s magnetic field, with the north and south poles located on opposite sides of the sphere. Because of their strong magnetic force and smooth ball shape, Neodymium sphere magnets are widely used in consumer products, stress-relief and desk toys, educational tools, and scientific demonstrations. They are also popular in creative and artistic projects, where the magnets can be combined into complex patterns, designs, and small sculptures.

Because Neodymium magnets are pressed under an external magnetic field, it is difficult to achieve tight tolerances or complex shapes directly from the pressing stage. The sintered blanks therefore require secondary machining to reach the final dimensions needed in real applications.

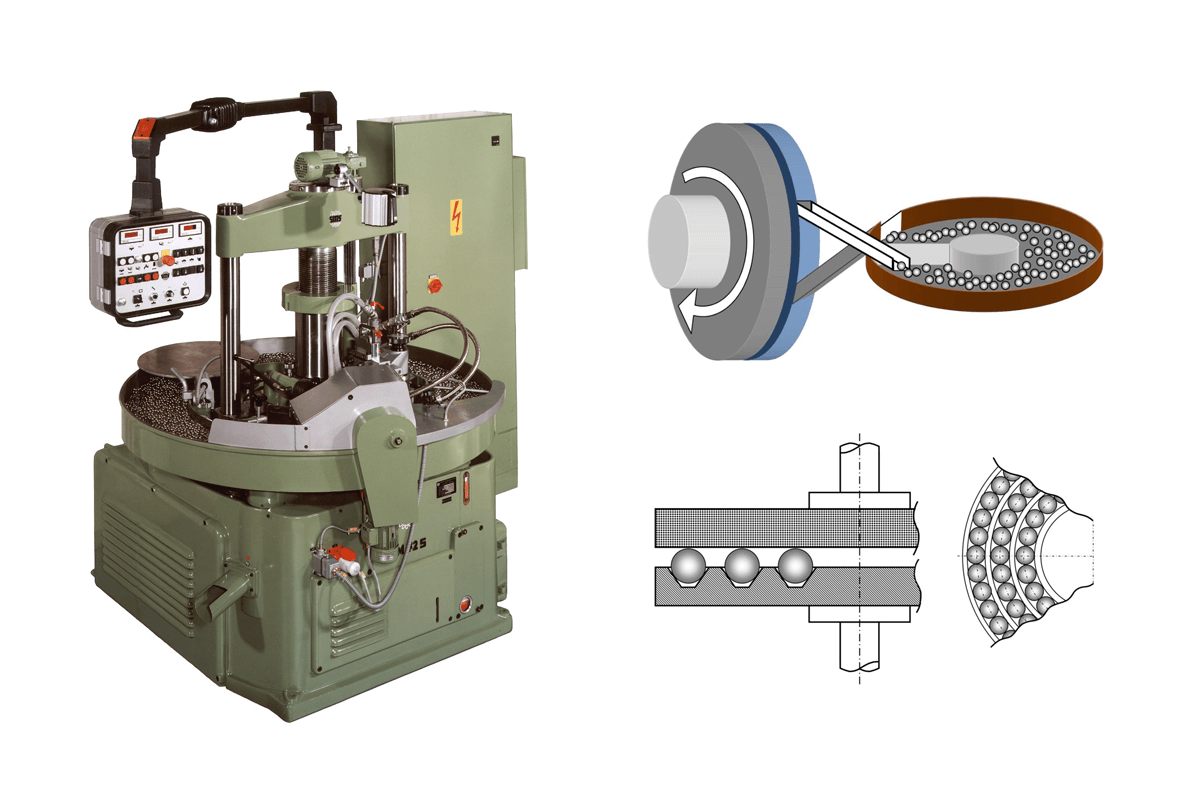

For Neodymium sphere magnets, users often focus more on color finishes and creative uses, but the machining process is just as important. Neodymium magnets are hard and brittle, so they cannot be shaped by forging like steel bearing balls. Instead, Neodymium sphere magnets are produced through grinding and lapping, using a profile grinding process similar to bearing-ball production. The process usually starts with Neodymium cylindrical magnets in a suitable size range. These cylinders are chosen to balance dimensional accuracy, machining efficiency, and material utilization, then ground and lapped into precise spheres.

After machining, magnetic balls can be finished with different coatings. Besides the standard nickel plating, they can also receive colored paint coatings applied by spraying. In this case, the paint layer is typically added on top of a zinc-plated base to improve adhesion and corrosion protection.
