Neodymium Ring Magnets

Ι What Are Neodymium Ring Magnets?

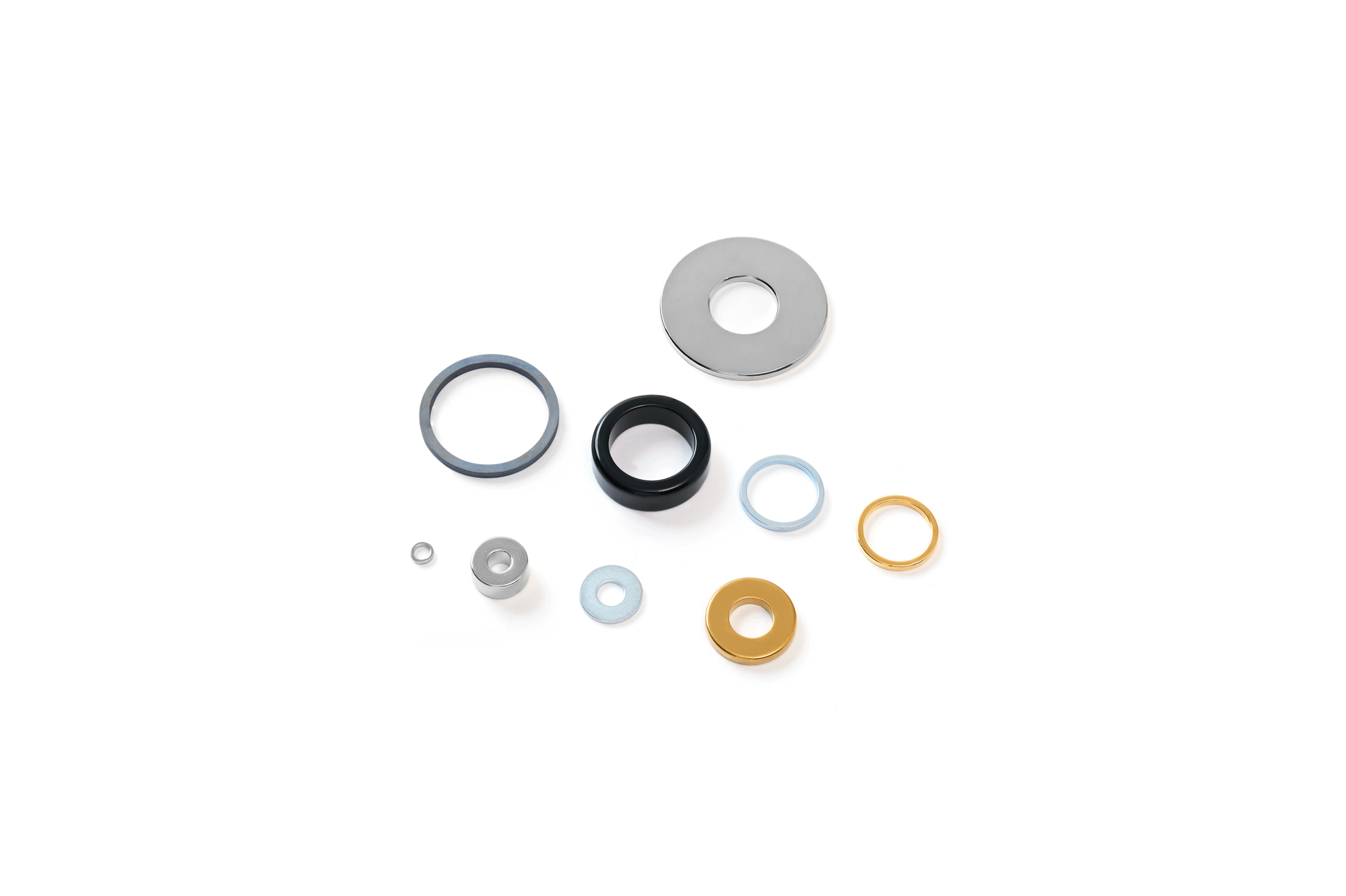

Neodymium ring magnets are permanent magnets made from a Neodymium–Iron–Boron (Nd-Fe-B) alloy. From a technical standpoint, they can be grouped by hole style into three designs: straight-hole rings, countersunk rings, and counterbore rings. The countersunk and counterbore versions are often treated as separate functional categories, but in everyday use, “Neodymium ring magnets” usually refers to flat, round magnets with a central hole. They are commonly specified by outside diameter (O.D.), inside diameter (I.D.), and thickness (T).

Neodymium ring magnets are used in many applications, and their magnetization direction largely determines how they perform. With the right magnetization pattern, these ring magnets are effective in holding and mounting tasks, loudspeakers, permanent magnet motors, sensors, and other systems that require compact, high-strength magnetic components.

How Neodymium Ring Magnets Are Manufactured?

Neodymium magnets are difficult to press into exact shapes and tight tolerances because the powder is compacted under an external magnetic field. This makes it hard to form ring magnets to final dimensions in the pressing stage. Therefore, sintered blanks must be machined afterward to meet the required specifications.

For axially magnetized or diametrically magnetized Neodymium ring magnets, machining usually starts from a cylindrical blank. The center hole is then made by drilling, trepanning, or laser drilling. Laser drilling is mainly used for very small holes in micro magnets. In most production lines, a 3 mm threshold is used to choose the method: holes smaller than about 3 mm are typically drilled with solid drills, while holes larger than 3 mm are formed by trepanning. The core removed during trepanning can often be reused to make other small magnets, which improves material utilization.

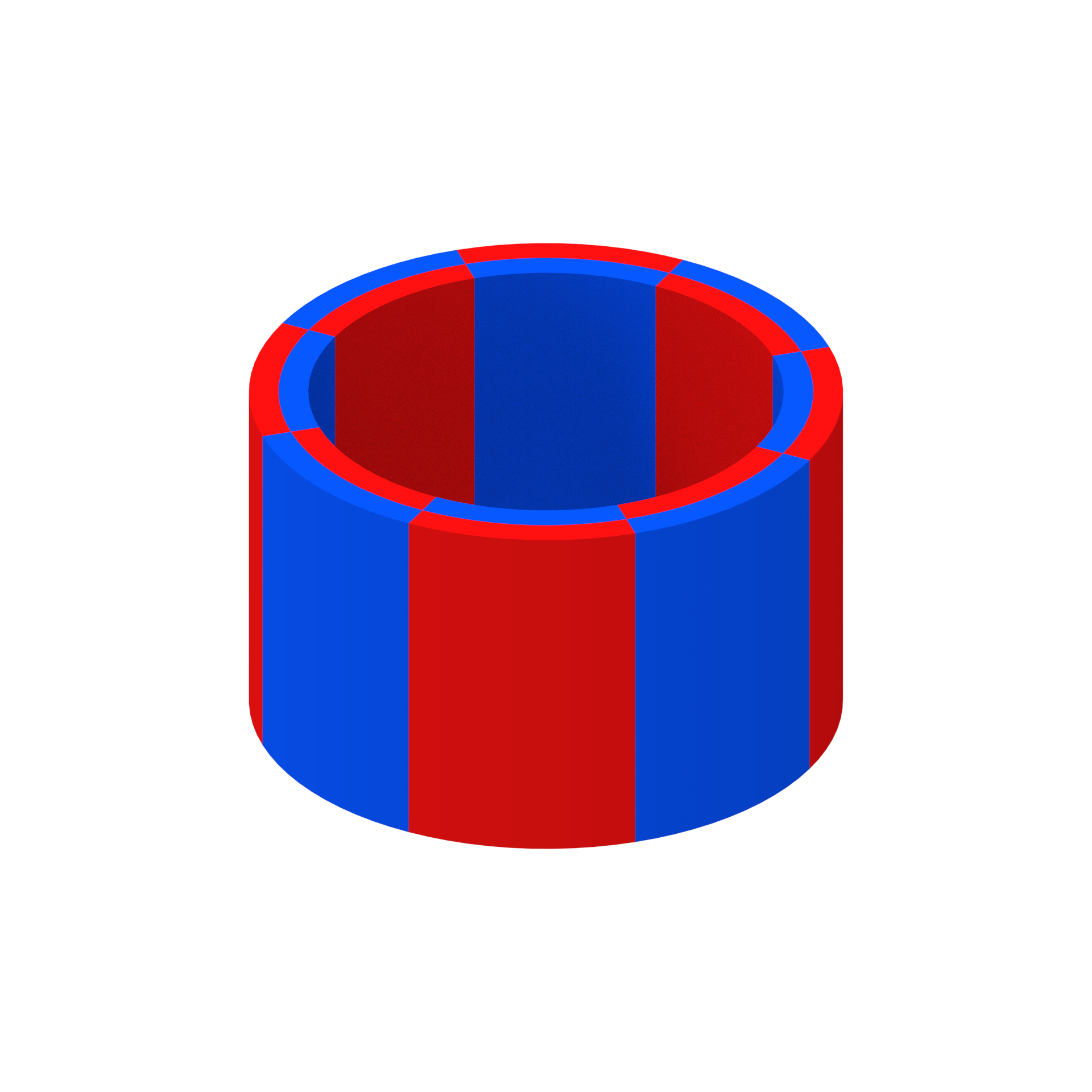

Diametrically multipole and radially magnetized Neodymium ring magnets are usually produced from sintered Neodymium magnets or hot pressed Neodymium magnets. Because these magnetization patterns demand stricter geometry and field control, they require more specialized manufacturing steps to meet the exact needs of each application.

Magnetization Directions of Neodymium Ring Magnets

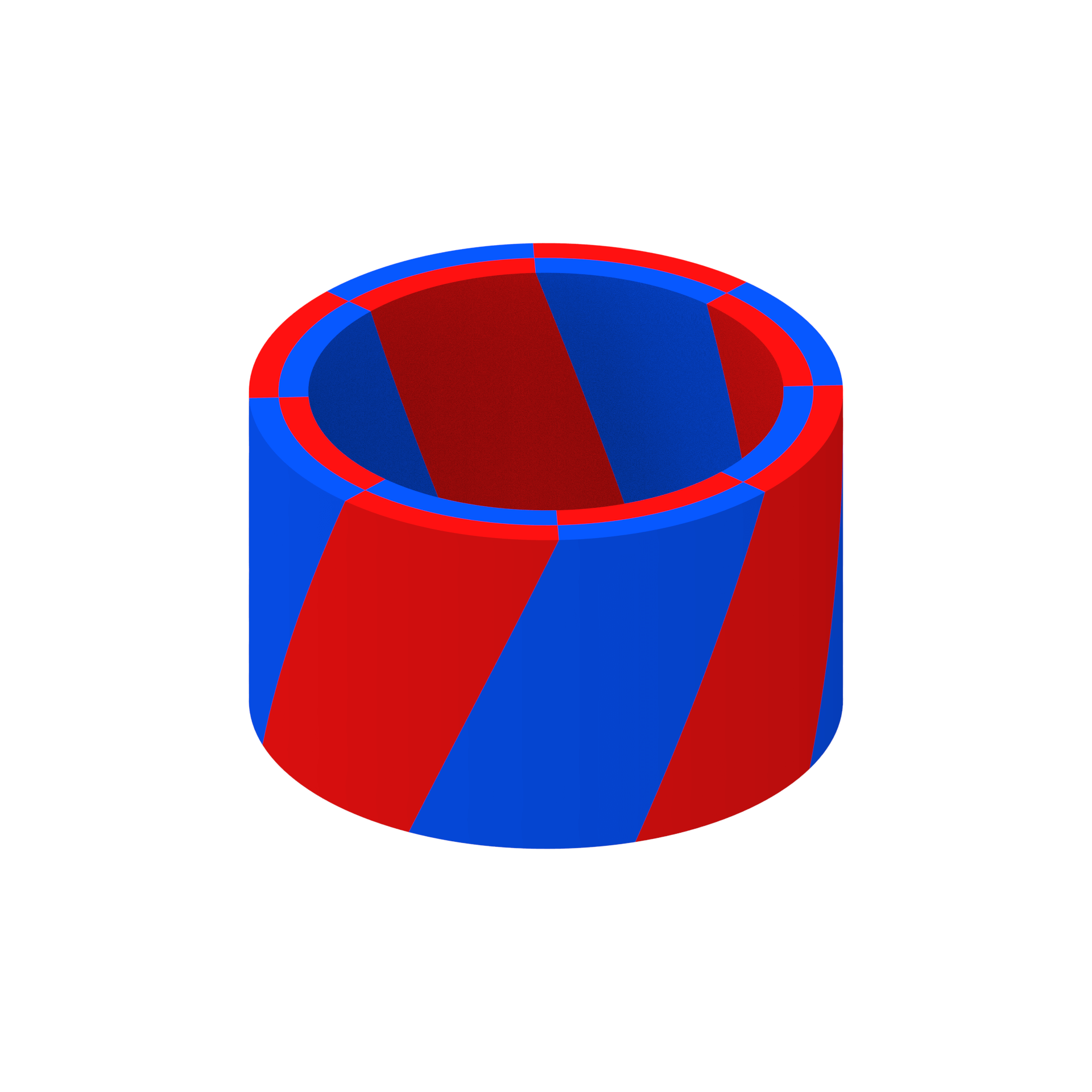

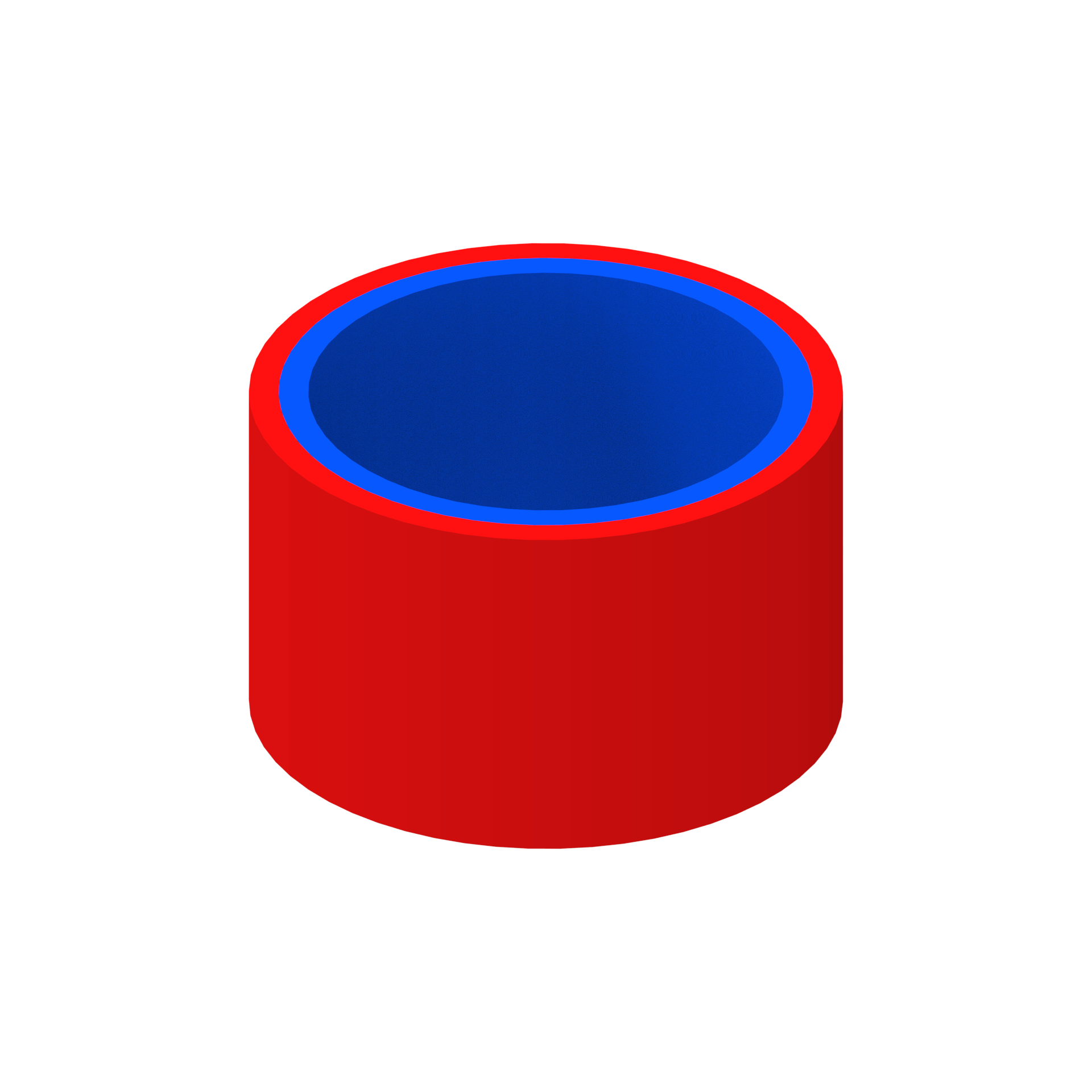

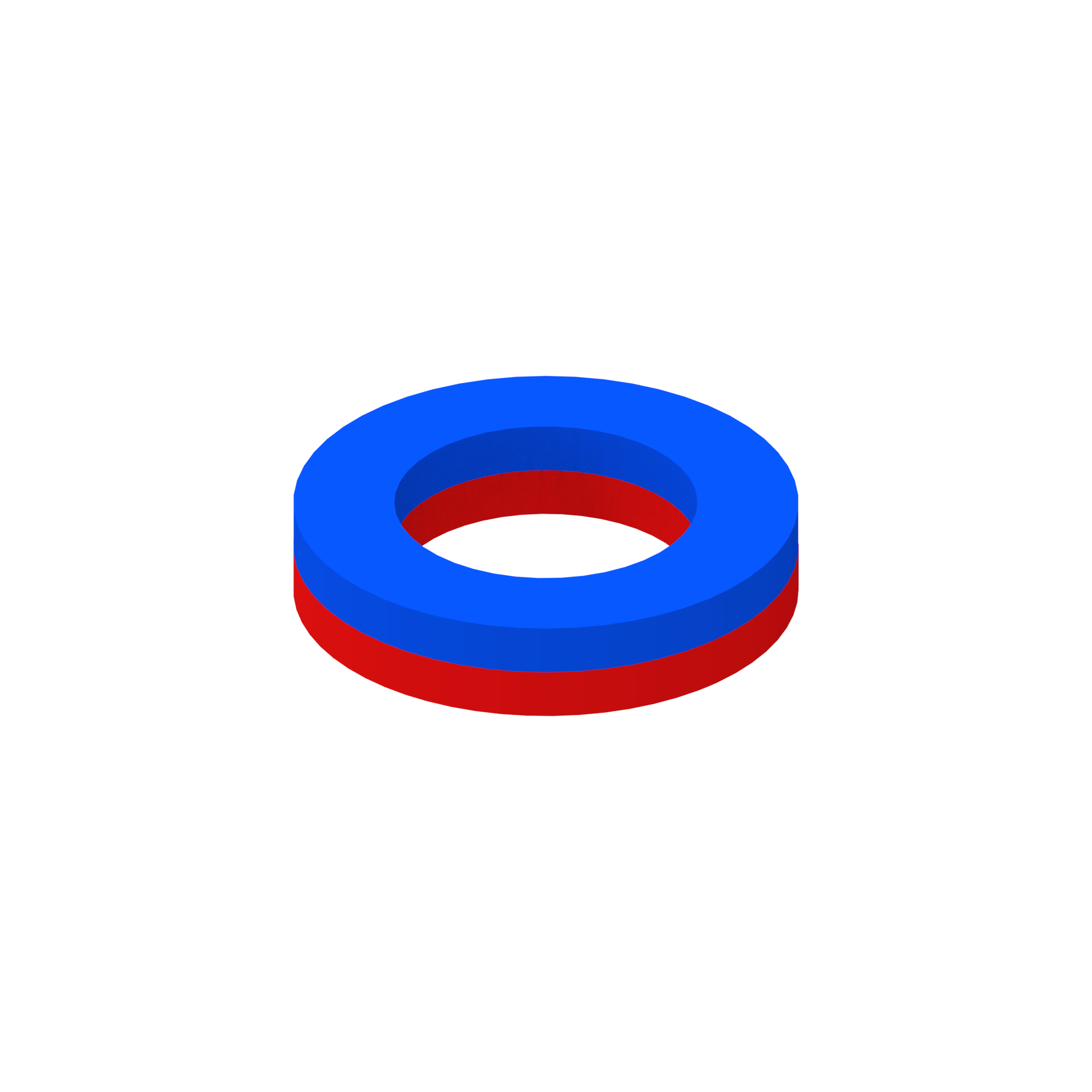

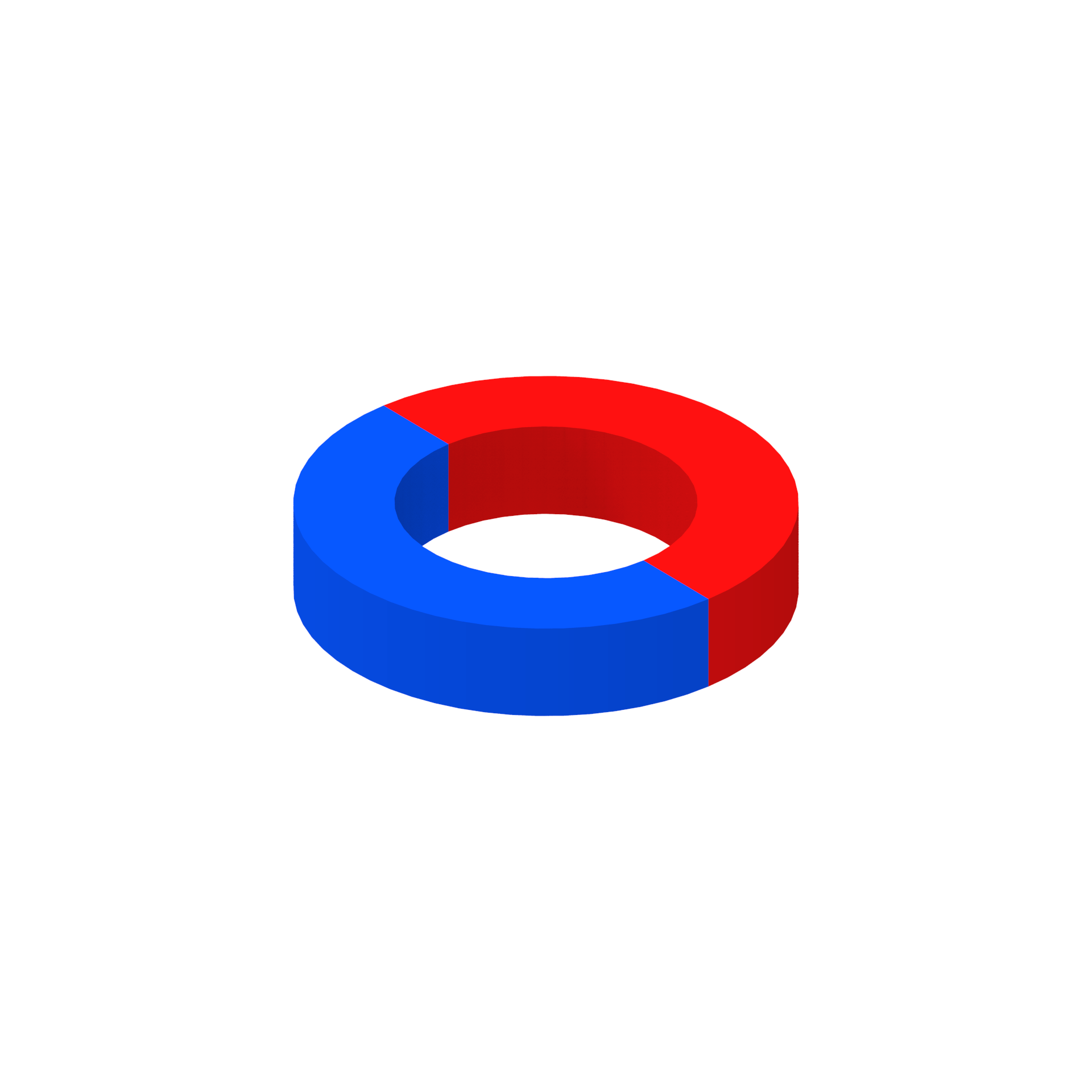

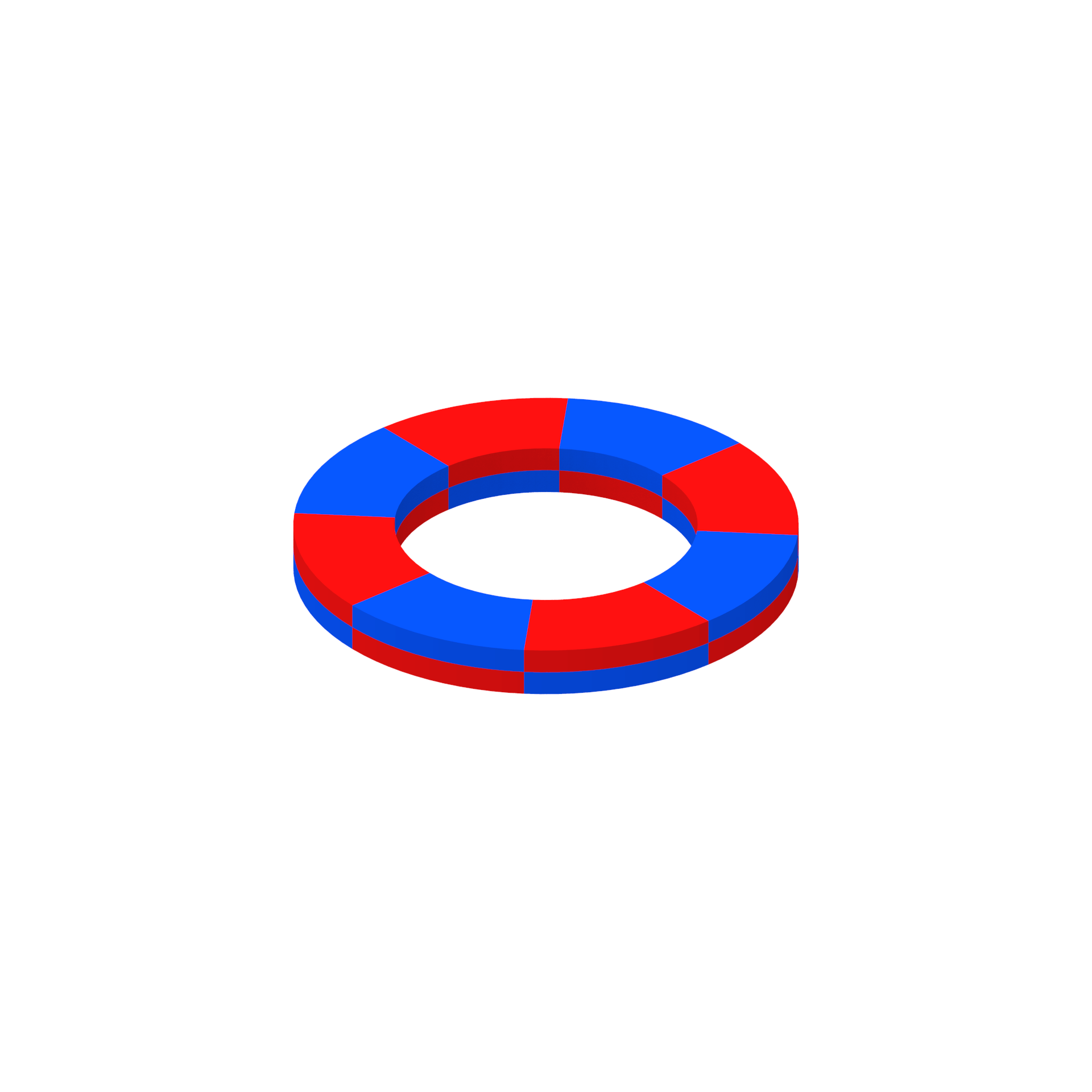

Neodymium ring magnets can be magnetized in several ways, most commonly with axial magnetization or diametrical magnetization. In some applications, they are also made with diametrical multipole patterns or true radial magnetization. The magnetization direction has a direct impact on how efficiently the magnet works and how well the final device performs. For this reason, choosing the correct magnetization for Neodymium ring magnets is an important part of design, ensuring the magnetic flux is distributed properly for the intended application.
